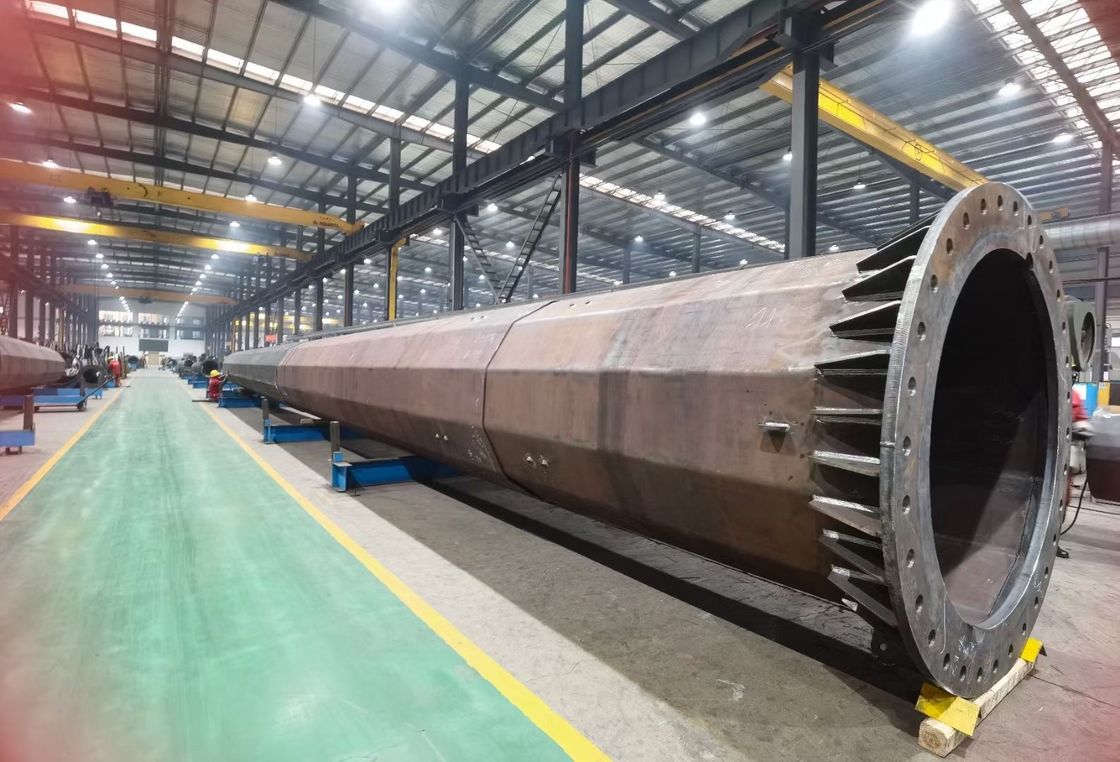

Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
Electric Power Pole With Flange Connection

Electric Power Pole With Flange Connection

Lieu d'origine Chine
Nom de marque JSHG
Certification ISO/CNAS/IAF/CA
Détails de produit
Une fois que formant:
16m une fois que formant sans joint
Usage:
Ligne de transmission de distribution/éclairage de rue, de route, d'autoroute, de zones commerci
Durée de vie:
Plus de 25 ans
Application:
Éclairage public, feux de circulation, signalisation, poteaux électriques
soudage:
Le soudage est conforme à la norme AWS D1.1.
Longueur:
Variable
Wallthickness:
Varie (généralement 2 mm à 10 mm)
Traitement d'apparence:
Dip chaud galvanisé
Garantie:
1-2 ans
Finition superficielle:
Galvanisation à chaud
Conditions de paiement et d'expédition
Quantité de commande min
un conteneur 40 HQ
Prix
negotiable
Détails d'emballage
* Couverts par un revêtement en plastique ou un tapis ou selon les demandes du client.
Délai de livraison
15 jours ouvrables après signature PI/DRAWING/SEPCS.
Conditions de paiement
L/C, T/T ou Western Union
Capacité d'approvisionnement
3 000 tonnes métriques par mois
Description de produit
Product Description:

Product Name Electric Power Pole with Flange Connection
Voltage Grade 10-220KV
Application Street, Road, Highway, Commercial Areas Lighting, etc.
Shape Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Surface Treatment Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
Can be powder coated or painted according to clients' request
Material Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Wall Thickness 2.3~18mm
Welding Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment ad your request
Life Period More than 25 years, it is according to installing environment
Joint Joint with insert mode, flange mode.

Base plate is square/round/polygon with slotted holes for anchor bolt and dimension as per client's requirement.
16m Once forming without joint.



JIANGSU HONGGUANG STEEL POLE CO., LTD.

With over 20 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Transmission Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.


Terms and Conditions:
1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, crossarm and anchor bolt.

Shipping seaport: Shanghai Seaport.

Please provide drawings if you have so that we can calculate the accurate price for you.

We also provide design according to your requests, if you don't have drawings.

2. MOQ: One 40FT Container.

3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.
